Description

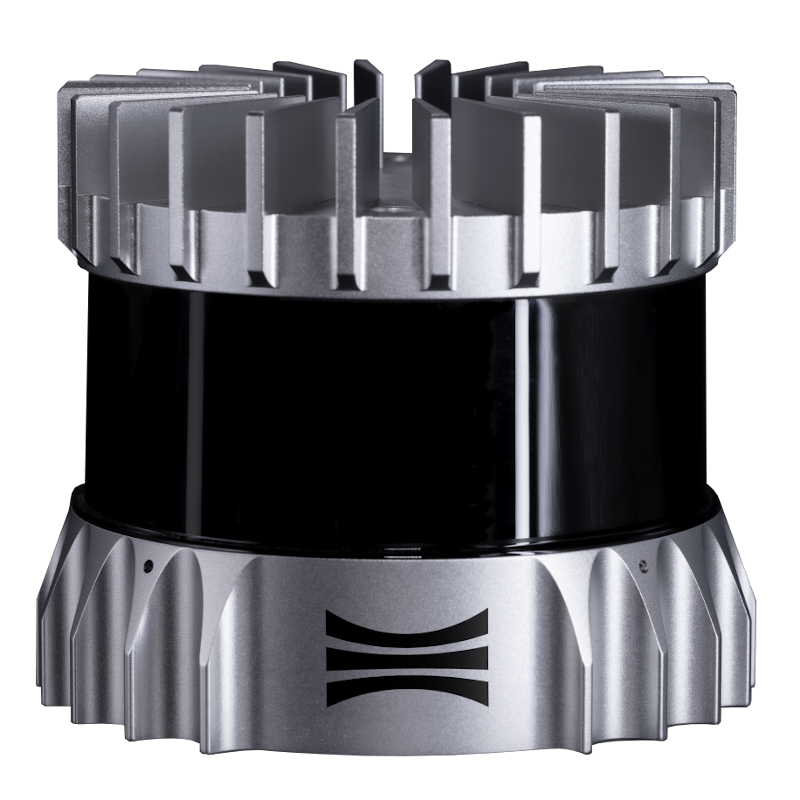

A compact 32-channel LiDAR sensor providing ultra-wide 3D coverage for robotics, drones and mapping applications.
See more of your surroundings. The OS0 SR combines a 90.8° vertical field of view with 360° horizontal coverage, capturing spatial information above, below and around the sensor.
Designed for indoor and outdoor environments, its compact construction simplifies integration into mobile platforms. Near-infrared, signal and reflectivity data complement its 3D measurements.
Highlights
32-channel configuration: Ultra-wide 3D LiDAR sensing.
Wide coverage: 90.8° vertical and 360° horizontal field of view.
Short-range performance: 15 m detection range on 10% reflective targets under specified test conditions.
Rugged construction: IP68 and IP69K protection with the I/O cable attached.
Also available in 64-Channel and 128-Channel. Click here to contact our dedicated AI sales team about Ouster.
For more product information, click here
Close-range sensing: Configurable 0.3 m minimum range
0.5 m default.
Flexible scanning: Configurable 10 or 20 Hz rotation rates, with up to two returns.
Connectivity: UDP over gigabit Ethernet.
Developer resources: Ouster SDK, ROS and C++ drivers, plus Ouster Studio for point-cloud evaluation.
